CCEWOOL View – How to choose insulation material for boiler

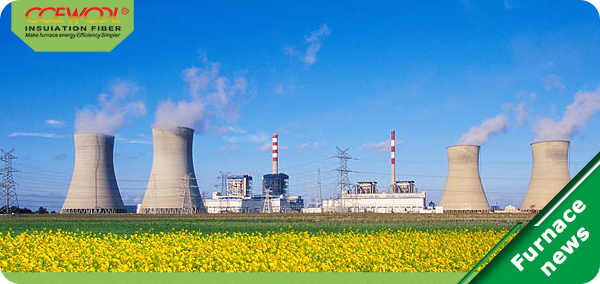

 Boiler used in power plant includes boiler and some other equipment. It will release heat when fuel burned in the boiler. The heat will transfer to the steam which has certain pressure and temperature though the metal wall of boiler. Sent the steam to steam turbine, it will generate electricity. Generally, the steam in the boiler is around 540C.

There are two insulation systems in power plant boiler: boiler body insulation and the other parts’ insulation. Here CCEWOOL share some experience when choose insulation material for boiler used in power plant. Hope it will be helpful.

Insulation layer: CCEWOOL rock wool blanket 100MM thickness + CCEWOOL ceramic fiber board, CCEWOOL Ceramic fiber module, CCEWOOL ceramic fiber cloth and glass fiber cloth.

Boiler water wall: CCEWOOL alumina brick + CCEWOOL rock wool board.

Great cover roof of boiler: CCEWOOL ceramic fiber + CCEWOOL rock wool board.

The boiler’s great roof cover: CCEWOOL refractory castable.

Tank inside of furnace: CCEWOOL Ceramic fiber board + CCEWOOL Ceramic fiber blanket.

Steam pocket: CCEWOOL Ceramic fiber blanket + CCEWOOL rock wool.

Downcomer: CCEWOOL Ceramic fiber board, CCEWOOL Ceramic fiber module, CCEWOOL Ceramic fiber blanket + CCEWOOL Rock wool.

Fold smoke wall angle: CCEWOOL ceramic fiber module, CCEWOOL Ceramic fiber blanket + CCEWOOL rock wool.

Air pre-heater: CCEWOOL Ceramic fiber board, CCEWOOL Ceramic fiber module, CCEWOOL ceramic fiber blanket + CCEWOOL rock wool.

Hot wind pipe of boiler: CCEWOOL ceramic fiber blanket + CCEWOOL rock wool.

Flue pipe of boiler body: CCEWOOL ceramic fiber module, CCEWOOL Ceramic fiber blanket + CCEWOOL rock wool.

Electric precipitation: CCEWOOL rock wool.
